Hampton Bay Ceiling Fan Wiring: Complete Step-by-Step Guide with Diagrams

Introduction:

If you have read all of our Hampton Bay blog posts, you must be aware of the latest Home Depot trend of DIY maintenance. Due to this trend, Americans are learning about the installation and troubleshooting their appliances and save extra bucks by preventing the repairing bills. Wiring and maintaining heavy appliances may be a nightmare in the beginning. Well, we cannot deny it as it can be difficult sometimes. However, you can do the job by following the safety guidelines and connect the wires carefully.

This blog post will be focused on your hidden technical expert to do the job. So, if you want to go ahead and experiment with your Hampton Bay Ceiling Fan Wiring and learn about the various wire colors, then read the entire blog post as we have covered everything you need to know.

Familiar Yourself with Ceiling Fan Cable Colors:

Let’s get started with the article on the topic of Hampton Bay Ceiling Fan wires. We are familiar with the fact that every electrical appliance in our homes has a network of electrical cables and ceiling fan is one of them. However, there is a variety of wire color in ceiling fans that make it unique from others. And I challenge most of you are not acquainted with the wire colors. right? Before you begin googling the colors. Hold on, readers, we have covered it, meaning wire colors with their purposes in this section.

So, the first thing you need to know is basics, I want to highlight that a simple Hampton Bay Ceiling Fan model commonly comes with four different cables in it. However, if there is an additional color cable available, it is not unusual.

The colored cables wired to the house:

• The black wire also known as the hot wire, is the central part of the Ceiling Fan circuit that makes the connection between the fan and the switch outlet.
• The neutral white wires send the additional power to the breaker box in order to maintain a closed electrical path.
• Green wires are insulated cables that saves your fan from the overvoltage problems.
• A blue or black wire coming from the home circuit shows that there are two wall switches.
• Red wire, is known as the secondary hot wire, the common use of this one is for switch-operated fans.

The colored cables attached to the fan:

• Black wires are used to stable the circuitry of the fan.
• Blue cables are used in a fan to attach a light kit.
• White wire, the color soothes the eyes, is neutral one.
• Green ones are used for grounding purpose.
• The red one double as conductors provide power supply to the lighting fixture.

Prepare to Wire a Ceiling Fan:

Before you wake up your inner expert and start opening your ceiling fan, you should learn about some safety concerns first. The reason is successful wiring can be done if you handle them safely, in this section, we will look at the few basic and unavoidable safety measures that lay the groundwork for secure and safe wiring. So, let’s begin.

• Firstly, go to the mains to turn off the electricity immediately. For this purpose, you need to go to your basement or garage and find the grey color box that has multiple trip switches. Find the relevant switch by looking at the labels on the fuse and shut it down to turn off the power to the fan.
• If you are not confident about the power switches, make a call to get help from a skilled electrician. This consultation session will save you from headache of electrical malfunctions.
• Remove the insulating coat on the wire carefully, approximately 1cm (about 0.39 in) from the margin to uncover the copper ends.
• Uncovered wires call for death, so secure all the additional cable ends using a cap or wire splice.
• Check the package that came with the fan for wire nuts and push connectors. Both of them are important for ceiling fan’s secure wiring.
• The wiring process becomes easier with color-coded wires. However, some manufacturers make different color codes for their items. The best course of action is to have a look at instructional manual and go through the instructions.

Installing a Fan or Light with Pull Chain Assembly:

Fans with pull chains are attractive. But it is hard to maintain these adorable articles as the chain can pull out anytime. However, secure connections and wiring can help to keep the fan functional for a long time. We have added a basic diagram for pull chain fan wiring that will be functional without a switch. In simple words, you will use pulling chain to run the fan as well as the light kit. So, you need to learn the secure wiring process to make the pull chain assembly process smoother.

Alright, do you have the wire color codes in your mind we discussed above? If not, look at them quickly because we will illustrate it here.

Let’s Get Started:

1. Neutral Connection: First of all, you are going to connect the neutral wire (white) from the ceiling fan to the neutral (white) wire coming out of ceiling. Use a wire nut to secure the connection.
2. Grounding: After that, connect the ground (green) wire from the fan to stripped copper or ground (green) wire in the ceiling box. Next, a wire nut will be used to secure the connection. You can also connect the green wire to the grounding screw, if your box has it.
3. Fan Power Supply: Now, the next step is to connect the hot (black) wire from the fan to the hot (black) wire from your ceiling. Fasten them with wire nut securely and then wrap them with an electrical tape for additional safety.
4. Light Kit Preparation: Even if there is no light kit installed in your unit, it would be ideal to make yourself ready for it in the future. Keepin in view the house wiring as which wire is coming from it, connect the blue wire from the unit to either black or blue wire. Use a wire nut to secure this connection as well.
5. Tuck and Test: Once you have made all the connections and secured them, tuck the wires into the ceiling fan housing carefully. Flip the breaker switch to turn on the power and test the pull chains to make sure everything is working fine.

Installing a Pull Chain Fan with Switch Operated Light:

If you like to enjoy the convenience of a wall switch to adjust the lighting, this wiring work for you. there is a layer of complexity in it as compared to pull chain setting, but by following the clear guidelines and paying attention to them, you can complete the installation professionally.

Key Points:

Switch Leg: We will add a “switch leg” a new wire addition often red to enable switch control for the light kit that works between the switch and the fan, serving electric power especially to the light.

Wire Nut Connections: As mentioned earlier, use wire nuts in order to join the wires together securely.

Color Coding: Remember to focus on the color coding fully, as it necessary for correct wiring.

Step-by-Step Guide:

1. Identify the Switch Leg: The red wire (the color can be of different color, check your manual) from the ceiling is the switch leg. It takes power the light kit when you turn on the switch as it connects to the switch.
2. Grounding: Use a wire nut to join the ground (green) wires from the fan and the ceiling box together and make a secure connection.
3. Neutral Connection: Use a wire nut to connect the white (neutral) wires from the fan and the ceiling together.
4. Fan Power: Use a wire nut to connect the black (hot) wire from the fan to the black (hot) wire from the ceiling and make a secure connection.
5. Light Kit Connection: Again, use a wire nut to connect the black wire from the light kit to the red (switch leg) wire from the ceiling and secure it.
6. Fan and Light Neutral: Use a wire nut to connect the white wire from the light kit to the white wire from the fan and secure it.
7. Tuck and Test: Put all the wires connections into the fan housing carefully. Mount the fan and access the breaker to turn on the electricity and test the pull chain as well as the wall switch to ensure everything is working fine.

Installing Ceiling Fan and Light Actuated with a single switch:

This wiring settings is ideal for areas where you want the light and the fan to work simultaneously by using a single switch. It is very suitable for areas such as living rooms, dining rooms where you always want to enjoy the airflow and illumination together. Let’s have a look at the wiring steps.

Wiring Steps:

1. Grounding: Always prefer the safety! Make a connection between the green (ground) wires from the fan and the ceiling box and use a wire nut for this purpose. Keep the connection secure.
2. Neutral Connection: Use a wire nut to connect the white (neutral) wires from the fan, the lighting kit, and the ceiling together. Both the fan and light can get a common neutral path due to this.
3. Fan and Light Power: Join the hot (black) wires from the fan and the light kit to same color wire (black) from the ceiling. Use a wire nut in order to secure all three wires. With this connection, the same switch can provide the power to the fan and the light.
4. Tuck and Test: Put all the wires connection into the fan housing. Install the fan and go to the breaker to turn it on, and check the wall switch. It should turn ON/OFF the fan and lighting fixture at the same time.

Key Points:

• Simple Control: It will prevent you from using the pull chains, allowing you to operate the fan and the light easily.
• Single Switch: This configuration will help you to control the light and the fan at the same time using a single wall switch.
• Perfect for Specific Spaces: This wiring option is very helpful for spaces where you want to use the fan and the light options simultaneously.

You can wire your Hampton Bay ceiling fan and light kit to make it work with a single switch by following the above steps and focusing on the connections.

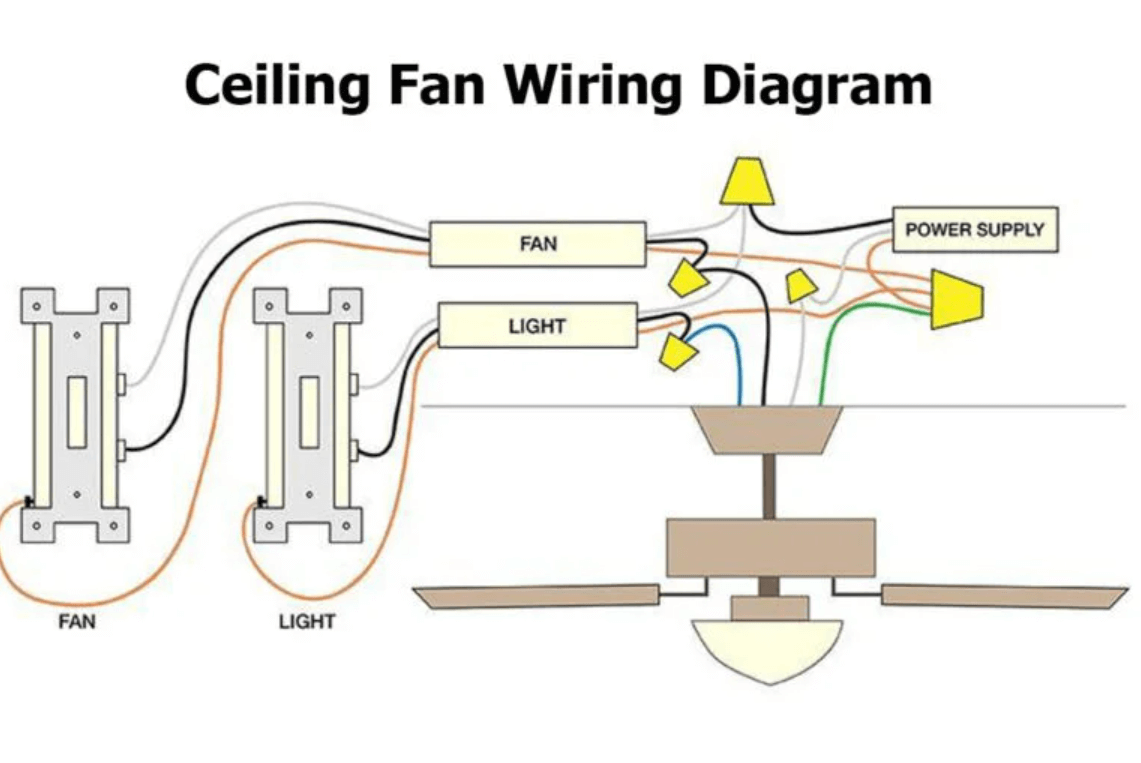

Installing Ceiling Fan and Light Activated with different switches:

This separate switch option is suitable for your kitchen as well as bedrooms. This allows you to operate the light and fan separately, the lights can remain off and you can adjust the fan’s speed. If it does not satisfy you, do not worry, we have more to explore yet. Furthermore, if you can also install a dimmer for your light kit. Before we have a look at the electrical connection details, here is cycle you need to learn.

In order to control your ceiling fan and light properly, they should be wired with separate switches. This helps you to control each of them independently, allowing flexibility to fulfill your requirement.

Wiring Steps:

1. Grounding: Always prefer safety first. Use a wire nut to join the green (ground) wires from the fan, the light kit, and the ceiling box with each other and make a secure connection.
2. Neutral Connection: Use a wire nut to connect the white (neutral) wires from the fan, the light kit, and the ceiling with each other. Both the fan and light can get a common neutral path due to this.
3. Fan Power: Join the hot (black) wires from the fan to same color wire (black) from switch #1. Use a wire nut to secure it.
4. Light Power: Join the black wire from the light kit to red one which is coming out from switch #2. Use a wire nut to secure it
5. Tuck and Test: Put all the wires connection into the fan housing. Install the fan and go to the breaker to turn it on, and check the switch individually. The switch #1 should be able to turn on/off the fan and the light should be working with switch #2.

Switch Box Connections:

1. Hot Wire to Switches: Make a connection between the black wire (the general color of hot wires) which is the power source to the common terminal on each switch. You might have to split the hot wire into “Y” configuration in order to join the both switches.
2. Switch #1 to Fan: Join the black wire coming from switch #1 to the black wire reaching the fan. Use a wire nut to secure it.
3. Switch #2 to Light: Join the red (or other appointed color) wire coming from switch #2 to the black wire reaching the light kit. Use a wire nut to secure it.
4. Neutral Connections: Use a wire nut in order to connect all the white (neutral) wires in the switch box together.
5. Ground Connections: Use a wire nut to join all the green (ground) wires or bare copper wires in the switch box together.
6. Tuck and Test: Put all the wires into the switch box carefully. Install the switch cover plate, access the breaker to switch it on, and test each switch again to make sure everything is working.

Installing a Remote-controlled Ceiling Fan:

The remote controlled ceiling fans by Hampton Bay show the commitment of the brand in its innovation. They provide a sense of convenience to your home and also add style to it with its limited movement. You can adjust the fan speed or turn on the light without leaving your sofa or bed, imagine the peace in it.

Let’s explore the steps you need to take in installing a Hampton Bay ceiling fan with remote control:

1. Safety First: Turn off the Power: Firstly, go to the breaker that sends power to the ceiling fan before you start your electrical work. It guarantees your safety throughout the procedure of installation.
2. Prepare the Remote Receiver: Check the remote receiver carefully. You will have to locate the DIP switches (small toggle switches) and push buttons that you need to set as per the guidance came with the fan. Also, install the compatible batteries in your remote.
3. Install the Fan: Follow the instructions of the manufacturer to mount the ceiling fan onto the ceiling box.
4. Position the Receiver: Push the remote receiver into the place gently above the metal downrod within the fan housing. Secure it carefully in place.
5. Connect the Wires: Match and make the connection of the wires from the fan to the compatible wires on the remote receiver. To learn about the specific instructions, check the wiring diagram came with your fan. Make sure that all the connections are secure.
6. Power On and Test: After making all the connections, access the breaker to turn it on, and check the remote. The remote should be able to control the fan and the light (if available).

Main Points:

• Convenience: Remote-controlled ceiling fans come with exceptional convenience, enabling you to control settings from anywhere in the room.
• Accessibility: These fans are suitable for people that has problem with movement, making it easier to control the unit.
• Follow Instructions: For accurate installation and programming, always read the specific guidelines given with your Hampton Bay ceiling fan and remote control.

After following the above steps and taking essential precautions, you can install your remote-controlled ceiling fan with ease. You will be able to enjoy the comfort, convenience and modern taste.

Suitable Tools and Safety Tips:

A person without the right tools on a ceiling fan wiring project is like a fish out of water. You should not start the project without understanding of safety protocols. To make the installation successful, you have to be prepared well.

Necessary Tools:

• Screwdriver: Usually, a Phillips head screwdriver is required to secure the fan to the ceiling box and make the wiring connections.
• Wire Strippers: They are used to remove the insulation from the wires carefully, exposing the copper conductors for connections.
• Electrical Tape: Wire connections and insulation can be done by using the electrical tape, adding a new layer of protection.
• Voltage Tester: This tool is helpful to confirm that the electricity is turned off at the ceiling box before you start working.
• Ladder: A sturdy ladder is essential to access the ceiling safely and comfortably.
• Optional Tools: Needle-nose pliers can be used to bend or manipulate wires, whereas wire nuts or push connectors (wire connectors) offer reliable and secure connections.

Safety Considerations:

• Eye and Hand Protection: You can protect your eyes from dust by always wearing safety glasses, and insulate your hands from electrical shock by using rubber gloves.
• Individual Junction Boxes: If installing multiple ceiling fans, every fan should be installed on its own dedicated junction box.
• Wiring Knowledge: Make yourself aware of the wiring color codes and go through the manuals to get the specific instructions.
• Fan Height: Mount your fan at least 8 feet above the floor to avoid accidents contact with the blades.
• Do not Overload: Avoid overloading your fan with objects or tools, as this can add unnecessary stress on the motor and can result in damage.

Just keep in mind your safety is essential. If you mishandle electricity, it can be dangerous, so always pay attention to proper safety procedures. If you are not confident about anything, get help from a qualified electrician.

Upgrade Your Comfort with Hampton Bay:

Ceiling fans are your partners to fight against heat, enabling you to enjoy refreshing air and boost your comfort. You can use extensive selection of accessories from Hampton Bay to upgrade your fan and add new features to it. Just keep in mind these instructions and equip yourself with the essential tools and knowledge. You can handle the ceiling fan wiring project with ease and confidence and make the installation successful.

Ceiling fans save you from scorching days of summer as they become your shield by providing the airflow. You can boost your comfort by adding the ceiling fan hardware and make changes with the best features of Hampton Bay ceiling fan. In order to find accessories, consider installing the Home Depot Mobile App and go to the Home Depot Official Website to get the job done!

Conclusion

Congratulations on understanding the Hampton Bay ceiling fan wiring! after learning about it, you can now go through your next home improvement project with confidence. Just keep in mind, whether you are mounting a new unit, troubleshooting an old one, or installing a light kit or remote control, understanding the wiring is necessary to a successful and safe installation.

Give priority to safety, follow the guidelines carefully, do not avoid calling a qualified electrician if you need anything. By paying attention to the instructions, you can experience the functionality and comfort of your Hampton Bay ceiling fan for years.
